Hover to zoom · click to expandAC001-3.3kW-HMI
Single-phase charger for e-2W, e-3W and overnight car charging
In StockPrice on request
Prices depend on quantity, installation and site conditions, so we quote each project. Tell us what you need and our team will send you a price.
Or write to akm@evitpl.com · call +91 99905 65638
Compatible with
Works with most electric scooters, e-rickshaws and cars sold in India.
Connector
IEC 60309 socket
Certification
Configure your charger
- Professional on-site installation available — quoted with the charger
- Cabling and extra electrical components charged separately after a site check
- Standard 1 Year warranty with pan-India service

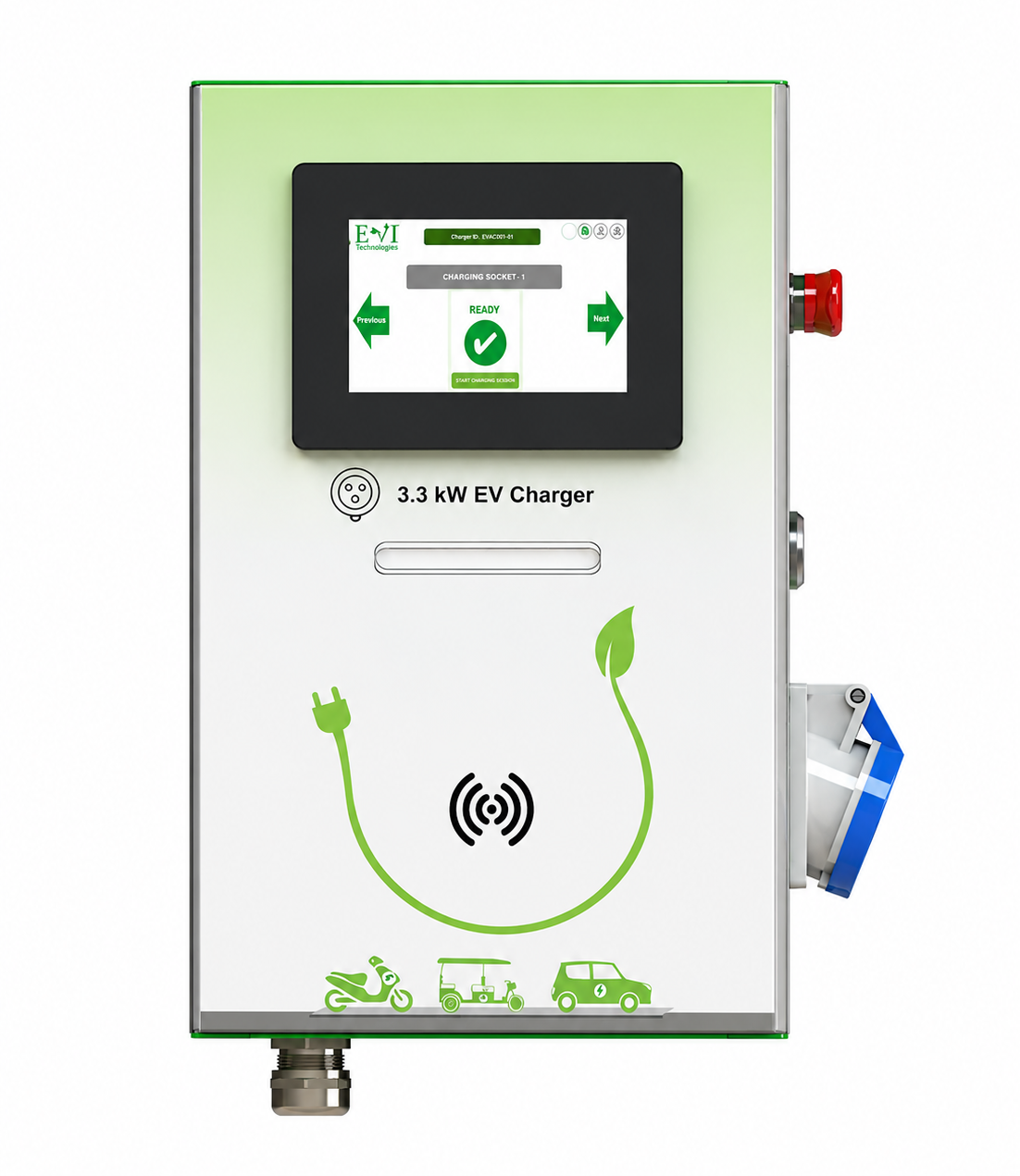

About the AC001-3.3kW-HMI
The AC001-3.3kW-HMI brings metered, networked charging to the places people park for hours — housing-society basements, office lots and public parking. Vehicles plug their own charging cable into the IEC 60309 socket and draw up to 3.3 kW from a standard single-phase supply.
A 4.3-inch touch display and an LED status light show at a glance whether the charger is charging, idle or in fault, while the integrated Class 1.0 energy meter records every unit for fair billing. Sessions start with an RFID card, a QR code or the mobile app.
Why buy this charger
LED status indication
Charging, idle and fault states visible from across the parking.
Integrated energy meter
A Class 1.0 meter on every output, so each session is billed accurately.
NABL certified
Tested to AIS-138-1 at NABL-accredited laboratories.
Built for open parking
Metal enclosure rated IP55 against dust and rain, IK10 against knocks.
Specifications
Everything on the AC001-3.3kW-HMI brochure sheet, grouped the way installers read it.
Output & power
- Output power
- 3.3 kW
- Input supply
- 1-phase, 200–240 V AC (±15%), 16 A
- Output voltage
- 230 V AC, 50 Hz
- Maximum output current
- 16 A
- Rated frequency
- 50 Hz ±1.5 Hz
- Output ports
- 1
Charging features
- Energy metering
- Integrated Class 1.0 energy meter on each output
- Load management
- Limits charging to the available load
- Heat protection
- Automatic power reduction
- Power-cut backup
- Battery backup for the control and billing unit (15 or 60 min)
Connector & installation
- Connector
- IEC 60309 socket, 16 A
- Mounting
- Wall mount (pedestal available)
- Dimensions (W × H × D)
- 230 × 350 × 140 mm
- Enclosure
- Metal body, IP55 dust and water protection, IK10 impact rating
- Cooling
- Natural cooling
Monitoring & access
- Display
- 4.3-inch touch display (800 × 480)
- Status indication
- LED — charging, fault and idle
- User authentication
- RFID card, QR code or mobile app
- Connectivity
- Ethernet, Wi-Fi and 4G
- Protocol
- OCPP 1.6J, upgradable to OCPP 2.0
- Interface language
- English
- Suggested usage
- Housing societies, offices, parking lots
- Compatible vehicles
- e-2W, e-3W and e-4W (overnight)
Safety & protection
- Electrical protection
- Over and under voltage, over current, short circuit, residual current (ground fault), earth presence monitoring, reverse polarity, surge and over temperature
- Emergency stop
- Mushroom-type push button
- Alerts
- Buzzer and LED status
- Gas safety
- Hydrocarbon gas detector
Environment, certification & warranty
- Operating temperature
- −30 °C to 55 °C
- Humidity
- Below 95% relative humidity, non-condensing
- Certification
- AIS-138-1, tested at NABL-accredited labs
- Standards
- IS 17017 compliant
- Warranty
- Standard 1 Year
Dimensions & certification
230 × 350 × 140 mm (W × H × D). Wall mounted, with a pedestal available at checkout.
Certified and standards-compliant
- NABL tested
- Tested at laboratories accredited by the National Accreditation Board for Testing and Calibration Laboratories.
- AIS-138-1
- Certified to the Automotive Industry Standard for AC electric vehicle charging in India.
- IS 17017
- Compliant with the BIS standard for electric vehicle conductive charging systems.
- OCPP 1.6J
- Speaks the open charge-point protocol, so it works with EVIT CMS or any OCPP-compliant platform.
What this charger can earn
For societies, parking operators and fleets that bill drivers per unit. Move the sliders to match your site.
At 3.3 kW this charger can deliver up to 79 kWh a day.
₹3,360
Before the cost of the charger, installation and CMS software
- Energy sold
- 480 kWh
- Billed to drivers
- ₹7,200
- Electricity cost
- − ₹3,840
| Quiet (2/day) | ₹1,680 |
|---|---|
| Your estimate (4/day) | ₹3,360 |
| Busy (6/day) | ₹5,040 |
Estimates for a 30-day month, before the cost of the charger, installation, CMS software, cabling and space rent.
Frequently asked questions
Electric two-wheelers and three-wheelers, and electric cars for slower overnight charging. Vehicles connect with their own charging cable through the IEC 60309 socket.
